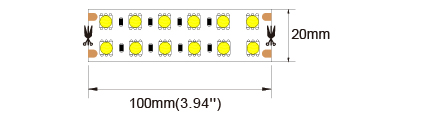

5050SMD-120LED-15


Product Details

Technical Spec

Download

●HIGH EFFICENCY SAVING UP TO 50% POWER CONSUPTION REACHING >180LM/W

●POPULAR SERIES WITH THE RIGHT FIT FOR YOUR APPLICATION

●Working/Storage Temperature: Ta:-30~55°C / 0°C~60°C.

●Lifespan: 35000H, 3 years warranty

5000K-A 4000K-A

Color rendering is a measure of how accurate colors appear under the light source. Under a low CRI LED strip, colors might appear distorted, washed out, or indistinguishable. High CRI LED products offer light that allows objects to appear the way they would under an ideal light source such as a halogen lamp, or natural daylight. Also look for a light source’s R9 value, which provides further information about how red colors are rendered.

Need help deciding which color temperature to choose? See our tutorial here.

Adjust the sliders below for a visual demonstration of CRI vs CCT in action.

Warmer ← CCT → Cooler

Lower ← CRI → Higher

#ERP #UL #A CLASS

SMD LED is consist of a chip and a base connecting them with an encapsulation material to protect it from external environment .Compared to other lights at this level, with a 3 year long lifespan under operating temperature range -30°C~60°C. The SMD Series STA is available in configuration as a spot light or flood light in warm white, cool white and natural white color temperatures.

The SMD SERIES STA LED FLEX is one of the most efficient indoor light sources available in the market today. Energy efficient, with a 50% power consumption saving compared to traditional lamp types, this sleek and versatile lighting solution uses only the highest quality components to provide a long lasting, maintenance free life cycle with low maintenance costs. The SMD series offers an ideal solution for a wide range of indoor applications including offices, schools, hotels, museums and hospitals.

The SMD SERIES STRIP LED is a high-performance linear light source for indoor lighting. It has a high CRI, high color consistency and high lumen maintenance. These characteristics make SMD series a perfect replacement for fluorescent lamps and other halide lamps. It's also cost-effective to maintain and operate, saving up to 50% energy consumption, reducing CO2 emissions by up to 40%, and providing the right fit for any application. SMD series is the most popular and commonly used LED strip. SMD series features "wide viewing angle" and "high brightness". It's designed for applications for which light distributions and view angles are critical. It can be used in sign lighting, display lighting, indoor decoration, cabinet lighting etc.

SKU

Width

Voltage

Max W/m

Cut

Lm/M

Color

CRI

IP

IP Material

Control

L70

MF350V120A80-D027A1A20

20MM

DC24V

24W

100MM

1920

2700K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

MF35OV120A80-D030A1A20

20MM

DC24V

24W

100MM

1992

3000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

MF350V120A80-D040A1A20

20MM

DC24V

24W

100MM

2040

4000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

MF350V120A80-DO50A1A20

20MM

DC24V

24W

100MM

2040

5000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

MF350V120A80-DO60A1A20

20MM

DC24V

24W

100MM

2040

6000K

80

IP20

Nano coating/PU glue/Silicon tube/Semi-tube

On/Off PWM

35000H

COB STRP SERIES
