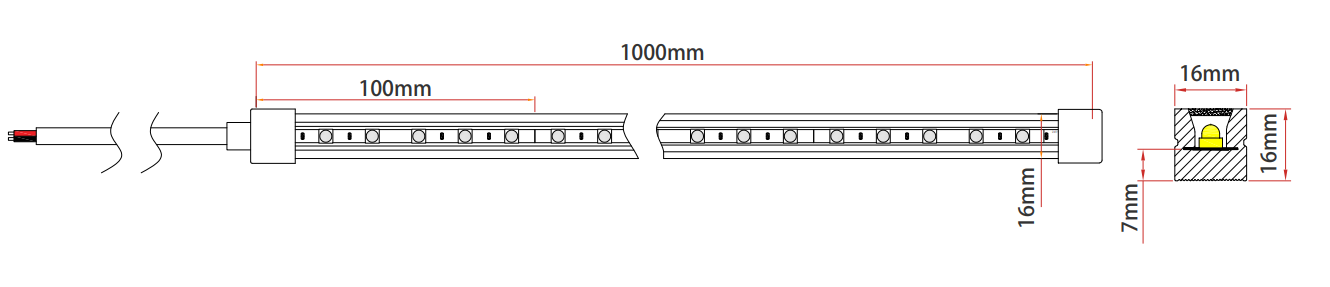

 5050 MINI wall washer


Product Details

Technical Spec

Download

●Use 38° beam Angle 5050 lens  LED lamp beads. Effectively improve the illumination value.
●Compared with the 120° beam Angle strip, more concentrated lighting and longer irradiation distance make the output light of the product with higher utilization efficiency and higher center illumination under the same luminous flux.
●Optimize the structure design and improve the optical efficiency. The material is resistant to flame retardant and UV.
● Can do different versions of RGB SPI RGB and white light
●Can be done up to 5M/ volume, can also use field shear to meet the required length.

5000K-A 4000K-A

Color rendering is a measure of how accurate colors appear under the light source. Under a low CRI LED strip, colors might appear distorted, washed out, or indistinguishable. High CRI LED products offer light that allows objects to appear the way they would under an ideal light source such as a halogen lamp, or natural daylight. Also look for a light source’s R9 value, which provides further information about how red colors are rendered.

Need help deciding which color temperature to choose? See our tutorial here.

Adjust the sliders below for a visual demonstration of CRI vs CCT in action.

Warmer ← CCT → Cooler

Lower ← CRI → Higher

#ERP #UL #ARCHITECTUR #COMMERCIAl #HOME

This New 5050 Mini Wallwasher strip is a update of Wallwasher series.It's size become smaller but same function with big wallwasher.And it has advantage as bellow:

1. Use 5050 lens RGB LED light beads with a 38° beam angle. Improve the illumination value significantly.

2. When compared to the 120° beam Angle strip, more concentrated lighting and a longer irradiation distance result in improved utilization efficiency and center illumination under the same luminous flux.

3. Improve optical efficiency by optimizing structural design. The material is flame retardant and UV resistant.

4. Can produce various kinds of RGB SPI DMX white light

5. Can be done up to 5M/volume; field shear can also be used to fulfill the requisite length.

6. IP65/IP67 protection level; can be utilized both indoors and outdoors.

Led wall washing lamp is more energy saving than the traditional wall washing lamp, large area for a long time can be used for the city to save objective electricity consumption,most project slowly replace the traditional wall washing strip with flexible wall washing strip.And LED wall wash light will not release harmful substances, green environmental protection, will not destroy the environment.

Led wall washer strip has many colors, can be controlled through the program, change a variety of wall wash effect, so that the light becomes very colorful. It is suitable for the installation and use of different types of buildings.

If you need to use with other light strips,we can give suggestion.Maybe you also need some high voltage strip,Neon flex for outside decoration,length,power and lumen can make as your requirement!No need to worry about the quality and delivery time,we have our own workshop more than Twenty thousand square meters,complete production equipment and testing machines.The product series includes SMD series,COB series,CSP series,Neon flex,High voltage strip,Dynamic pixel strip and Wall-washer strip.If you need sample for test or any other information,please contact our sales!

SKU

Width

Voltage

Max W/m

Cut

Lm/M

Color

CRI

IP

Control

L70

MF35LA060Q00-D000D6F10106S

12MM

24V

13.5W

100MM

440

RGB

NA

IP65

SPI

35000H

MF35LA060A00-D000J1F10106N 10MM 24V 16W 100MM 500 RGB NA IP20 On/Off RGB remote 35000H
MF35LA060A00-D000J1F10106S 10MM 24V 13.5W 100MM 400 RGB NA IP20 SPI 35000H

MF35LW060Q80-D040B1F10106N

12MM

24V

15W

100MM

1480

4000K

>80

IP65

PWM

35000H

MF35LW060A00-D040A1F10106N

10MM

24V

15W

100MM

1500

4000K

>80

IP20

PWM

35000H
